PROFIS ENGINEERING
An all-in-one solution for connection and fastening design
PROFIS Engineering Suite is user-friendly, cloud-based software that makes designing and analyzing structural connections faster and easier than ever.
Not just for anchors, PROFIS designs, calculates and analyses multiple fixings, including steel to concrete, concrete to concrete, and steel to masonry and baseplate solutions that are more reliable, more cost-effective and code-compliant. The software also comes with application-specific engineering training that enables you to unlock the full potential of PROFIS.
Benefits of PROFIS ENGINEERING at a glance
Enable compliance
Get peace of mind knowing that your design will automatically meet local codes and approvals. As a leading manufacturer of anchors, interpreting codes and putting them to work is our key ambition.
Improve accuracy
Manual input errors mean costly rework. Get it right the first time by importing load cases from structural analysis software, processing multiple loads simultaneously and building accurate BIM/CAD models.
Save time
Use templates to design connections in minutes. Don't waste time researching – let PROFIS spec the anchors instead. And speed up communication by granting your entire team access to the most recent file in the cloud.
Learn efficiently
Whether you are an experienced or a graduate engineer, our technical training – covering application basics and advanced modules – enable you to do fast, compliant designs.

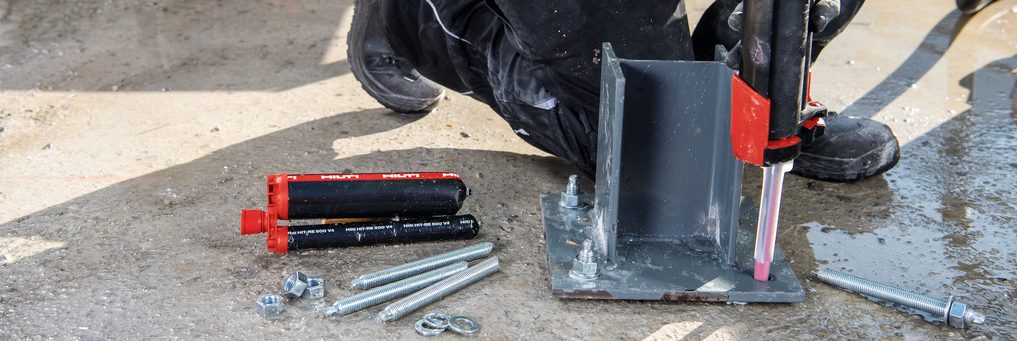

Anchoring to Concrete
Design complex and day-to-day structural baseplate connections
Use preset templates to design concrete fixings including post-installed and cast-in-place anchors, baseplates, welds and stiffeners quickly and accurately. With just a click you can analyze baseplates using CBFEM and perform rigidity checks to determine whether to adapt the design or the loads. Optimize fixture points and perform stress and strain checks – PROFIS considers applied loads such as seismic and fatigue and can find economical solutions for avoiding breakout using supplementary reinforcement. Smart baseplate design further simplifies your design process.
Generate a customized report complete with code references, calculations, product information and images.

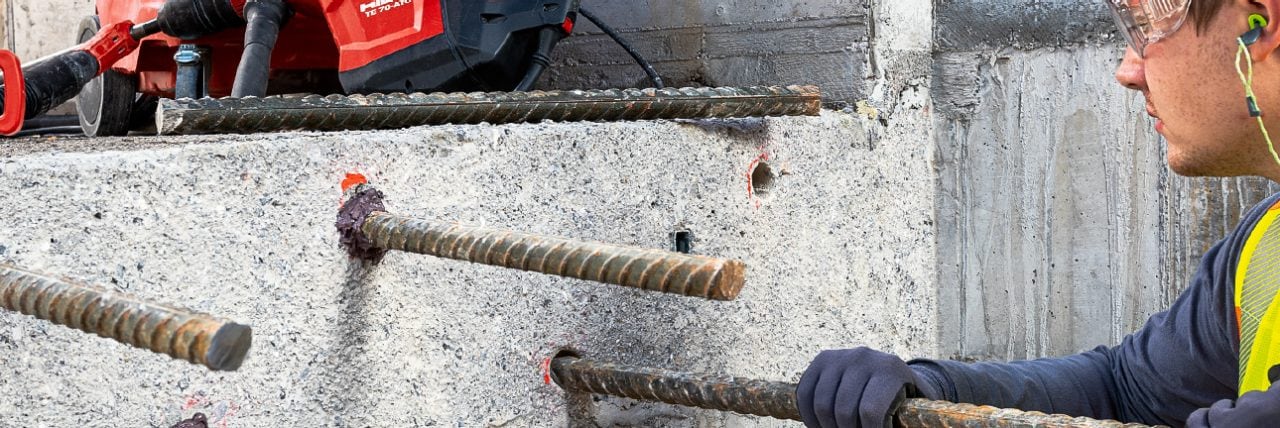

Concrete to Concrete
Design code compliant post-installed rebar connections
Model applications for slab/ wall extensions, structural joints, or concrete overlays. Various application methods including ACI development length, lap splices and achoring to concrete provisions. Verify shear resistance at the interface using ACI shear friction or research based methods.

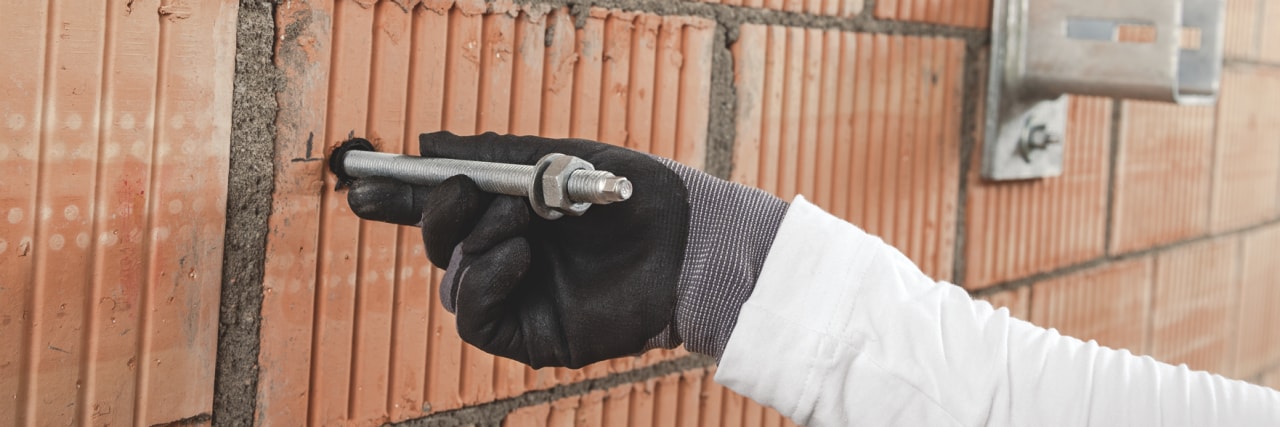

Anchoring to masonry
Design masonry fixings more productively and accurately
PROFIS Engineering Suite can help you design accurate baseplate connections using masonry-approved anchors. Save time with intuitive built-in templates that combine your on-site data with factors such as allowable tension and shear loads while considering load reductions and geometry requirements.
Select from multiple sizes and types of brick or concrete masonry units, adjust their layout and define whether grout is present. You can even create your own templates to reduce design time on similar projects.
Select the Right Profis Engineering License for you
PROFIS Engineering Standard- Free
- Built on the capabilities of its predecessor (PROFIS Anchor)
- Available FREE of charge
Use Now >
Stand-alone licence - best for individuals
- 1 user
- Only one named user access at a time per license
- SGD 340 per year
Buy Now >
Floating licence - best for medium-sized companies
- Up to 40 users
- Only one user access at a time per license
- SGD 500 per year
Buy Now >
Choose the version that best suits your team
PROFIS Engineering Suite |
Standard |
Premium Individual |
Premium Floating |
---|---|---|---|
Cost Number of Users |
Free [GET] 1 |
SGD 380/year [BUY] 1 |
SGD 500/year [BUY] Unlimited |
Anchor Design ACI 318 and CSA A23.3 Design Post-Installed Anchors Cast-In Anchors |
✔ ✔ ✔ |
✔ ✔ ✔ |
✔ ✔ ✔ |
Structural Connection Applications Concrete Fixings Concrete to Concrete Concrete Over Metal Deck Masonry Fixings Handrail Fixings |
✔ ✔ ✔ ✔ |
✔ ✔ ✔ ✔ ✔ |
✔ ✔ ✔ ✔ ✔ |
Productivity Features Project Sharing Customizable Reports Multiple Load Combinations Load Engine |
✔ ✔ ✔ ✔ |
|
|
Baseplate Design Type Profile, Baseplate, Weld, Stiffener and Concrete Design Rigid Anchor Load Distribution AISC Design Guide 1 Component Based Finite Element Analysis (CBFEM) Baseplate Rigidity Check |
✔
✔ |
✔ ✔ ✔ ✔ ✔ |
✔ ✔ ✔ ✔ ✔ |
Integrations With 3rd-Party Analysis Software Import Loads from Excel RISA Connection STAAD.PRO ROBOT ETABS SAP 2000 Dlubal |
|
✔ ✔ ✔ ✔ ✔ ✔ |
✔ ✔ ✔ ✔ ✔ ✔ |
Output Item Number BIM/CAD Export REVIT Plug-in TEKLA Plug-in |
✔
|
✔ ✔ ✔ ✔ |
✔ ✔ ✔ ✔ |
Engineering Trainings E-learning Face-to-face |
|
✔ |
✔ |
